Overview

Lap Counter and Laps To Go are two small widgets that each show one big line of text: Lap Counter reads “Current Lap: X of Y” and Laps To Go reads “Laps to go: X”. They are built to be read from across the room, so the text scales with the tile and a tile can be dragged large on a spare screen. Both measure the playhead lap against the scheduled race distance.
Both are race-only widgets: outside a race session each shows “Session is not a race.” and computes nothing.

​
What It Shows

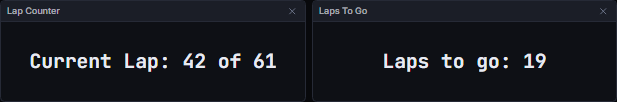

Lap Counter and Laps To Go side by side (Singapore 2026, lap 42) Each widget is a single centred line in a bold, fixed-width, tabular font, so the digits do not jitter as the lap changes. The font size follows the tile’s height and width, so the line grows and shrinks with the window rather than being fixed. The line never wraps.

​
Lap Counter

If the playhead lap ever exceeds the total, the lap shown is held at the total, so the line never reads past “57 of 57”.

​
Laps To Go

Before the first lap the full distance is shown. After the flag it holds at 0.

​
Data Behind It

Neither widget has an insight metric behind it, so there is no model_id or model_version to read. Both are client-side derivations: currentLapText and lapsToGoText in src/screens/lapCounterText.ts build the strings, and LapCounter and LapsToGo in src/screens/LapCounter.tsx draw them.
  • Playhead lap: the same current lap the transport bar shows, so both widgets move with play, pause, seek and scrub.
  • Race distance: the total_laps value of the race’s fuel_numbers parameter row, fetched once from the gateway’s parameters endpoint when the session is opened and matched to the session’s season and round.
  • No fallback: the transport bar falls back to the highest lap seen so far when the parameter is missing. These two widgets deliberately do not use that fallback, because it would make “Current Lap: 12 of 12” read as true mid-race. With no parameter they say less, or show a dash, rather than guess.
  • Live and replay envelopes are wire-identical; the widgets never branch on envelope source.

​
States

Lap Counter reads “Current Lap: 12 of 57” and Laps To Go reads “Laps to go: 45”.
Lap Counter reads “Current Lap: - of 57”. Laps To Go shows the whole distance, “Laps to go: 57”.
Lap Counter drops the total and reads “Current Lap: 12”. Laps To Go reads “Laps to go: -”. This happens when the race has no fuel_numbers row, or the row carries no total, or the session is not yet matched to a season and round.
Lap Counter reads “Current Lap: -”.
Lap Counter holds at the total, for example “Current Lap: 57 of 57”. Laps To Go reads “Laps to go: 0”.
In practice, qualifying or any other non-race session, both widgets show “Session is not a race.”
Identical rendering; only the playhead differs.

​
FAQ

The transport bar falls back to the highest lap observed so far when the race distance is missing. These widgets read the scheduled distance only, so they leave the total out rather than show an observed count that would be wrong mid-race.
The race distance is not available for this session. Nothing is assumed, so there is no number to subtract from.
No. It uses the scheduled distance from the parameter row and the playhead lap, so it does not adjust for a race that finishes early or on time.
Yes. Resize the tile and the text scales with it, up to a very large size.

​
Next Steps

Timing Tower

The running order that goes with the lap count.

Pit Stops

Who has stopped, and when, as the laps run down.

Pit Window

The stop window measured against the laps remaining.

Tyre Deg & Life

How much tyre is left for the laps to go.
